Tectivity’s Type-A
VIDEOMODULE©
is our response to the customer’s voice for this essential
peripheral for vision systems on the shop floor. This third generation ruggedized
enclosure system is compact and low mass, well suited also for robot applications.
|

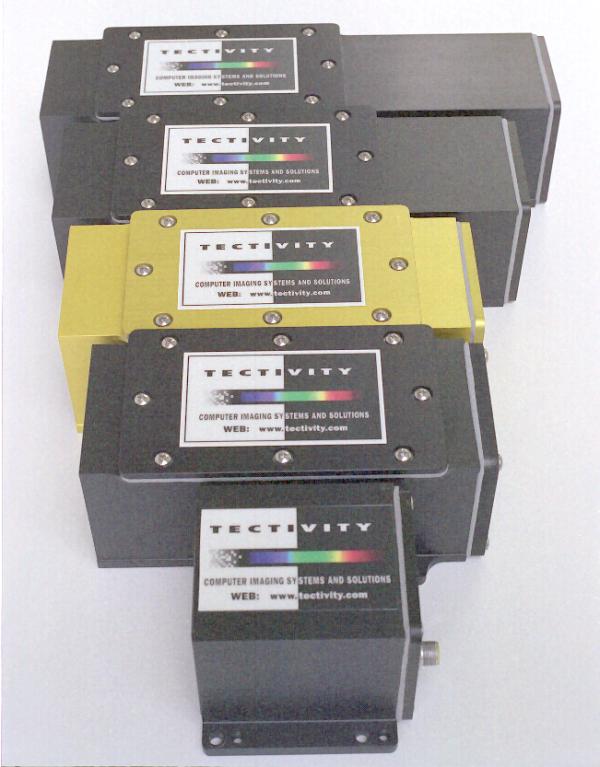

A selection of standard
VIDEOMODULEs and the LITEMODULE© (bottom
of view)
enable tamper-resistant and sealed environments for the camera,
the optics, lighting and other options.
|

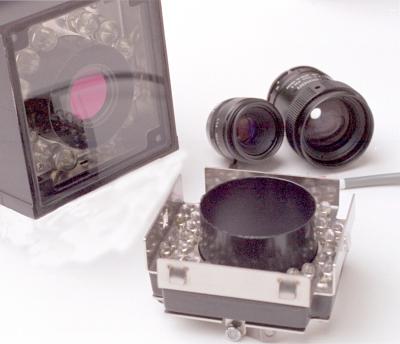

VIDEOMODULEs accommodate
a spectrum of lenses, with focal lengths ranging from 3mm to 300mm.
|

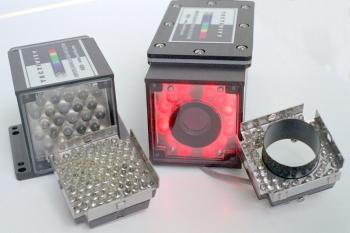

Tectivity’s LED RingLight
options for VIDEOMODULEs work best with lenses with a maximum OD of
40mm (19/16”).
|

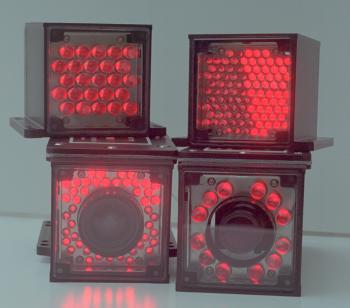

Tectivity’s RingLights can
be configured to suit most lens focal lengths. LITEMODULEs enable
also off-axis illumination, and are configurable to suit the lens. These
LED lights are suitable for standoffs from inches to meters.
|
Tectivity lights use Advanced
illumination’s proven Evenlite7 technology. Though ‘660nm’ red illuminators
with bandpass filters are common for machine vision applications, other
LED colors and programmable RGB light heads are also available.
|
The VIDEOMODULE was designed for seamless mating with popular smart
sensors as well as traditional machine vision cameras, B&W and color.
|

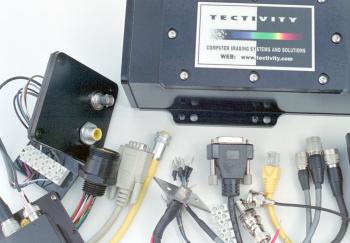

For quick-connect considerations
for installation or service replacement, the VIDEOMODULE provides
flexibility for most connector configurations. When camera cabling or the
application require a grommet (left side) up to three cables can be installed,
plus a sealed connector to power the optional illuminator.
|
